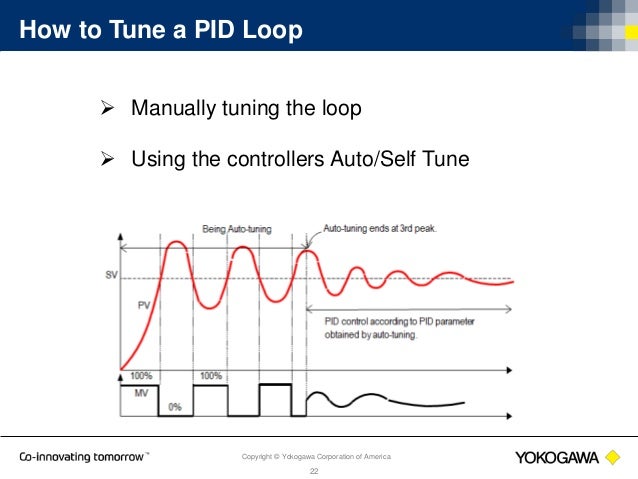

Feb 28, 2017  A PID tuning technique involves determining proper gain values for the process being controlled. While this can be achieved manually or by using control heuristics, most of the latest controllers offer auto tune capabilities. PID Auto-Tuning Most modern PID process controllers will support auto-tuning (also known as self-tuning ) of the PID settings. Typically the way this works will depend on which manufacturer’s product you are using, but commonly they use a rule based calculation in the same way that an experienced engineer tuning the device manually would. Auto tuning of PID control loops. 06 September 2011. Many PID control loops are still operated manually. CEE looks at an auto tune solution which offers the benefit of having a clear view of the information on a large-screen HMI.

• What Is Pid Auto Tuning Kit
• Pid Controller Autotuning

Apr 01, 2014 Not happy with how your 3D printer keeps its temperatures? Fix it with Marlin's awesome PID autotune and improve the quality of your prints at the same time. Now where did i put my exciting voice? PID tuning refers to the parameters adjustment of a proportional-integral-derivative control algorithm used in most repraps for hot ends and heated beds. PID needs to have a P, I and D value defined to control the nozzle temperature. PID (Proportional Integral Derivative) is the control algorithm the printers use for holding temperature. The parameters for this algorithm control how fast the printer reaches the set temperature and how well it holds that temperature once it gets there. Fortunately, the printer has an. M303 - PID autotune thermal Auto-tune the PID system to find stable values. This command initiates a process of heating and cooling to determine the proper PID values for the specified hotend or the heated bed. Requires PIDTEMP or PIDTEMPBED. View current PID values with M503.

PID tuning refers to the parameters adjustment of a proportional-integral-derivative control algorithm used in most repraps for hot ends and heated beds.

PID needs to have a P, I and D value defined to control the nozzle temperature. If the temperature ramps up quickly and slows as it approaches the target temperature, or if it swings by a few degrees either side of the target temperature, then the values are incorrect.

To run PID Autotune in Marlin and other firmwares, run the following G-code with the nozzle cold:

This will heat the first nozzle (E0), and cycle around the target temperature 8 times (C8) at the given temperature (S200) and return values for P I and D. An example from http://www.soliwiki.com/PID_tuning is:

For Marlin, these values indicate the counts of the soft-PWM power control (0 to PID_MAX) for each element of the control equation. The softPWM value regulates the duty cycle of the f=(FCPU/16/64/256/2) control signal for the associated heater. The proportional (P) constant Kp is in counts/C, representing the change in the softPWM output per each degree of error. The integral (I) constant Ki in counts/(C*s) represents the change per each unit of time-integrated error. The derivative (D) constant Kd in counts/(C/s) represents the change in output expected due to the current rate of change of the temperature. In the above example, the autotune routine has determined that to control for a temperature of 200C, the soft PWM should be biased to 92 + 19.56*error + 0.71 * (sum of errors*time) -134.26 * dError/dT. The 'sum of errors*time' value is limited to the range +/-PID_INTEGRAL_DRIVE_MAX as set in Configuration.h. Commercial PID controllers typically use time-based parameters, Ti=Kp/Ki and Td=Kd/Kp, to specify the integral and derivative parameters. In the example above: Ti=19.56/0.71=27.54s, meaning an adjustment to compensate for integrated error over about 28 seconds; Td=134.26/19.56=6.86s, meaning an adjustment to compensate for the projected temperature about 7 seconds in the future.

The Kp, Ki, and Kd values can be entered with:

In the case of multiple extruders (E0, E1, E2) these PID values are shared between the extruders, although the extruders may be controlled separately. If the EEPROM is enabled, save with M500. If it is not enabled, save these settings in Configuration.h.

For the bed, use:

and save bed settings with:

For manual adjustments:

• if it overshoots a lot and oscillates, either the integral gain needs to be increased or all gains should be reduced
• Too much overshoot? Increase D, decrease P.
• Response too damped? Increase P.
• Ramps up quickly to a value below target temperature (0-160 fast) and then slows down as it approaches target (160-170 slow, 170-180 really slow, etc) temperature? Try increasing the I constant.

See also Wikipedia's PID_controller and Zeigler-Nichols tuning method. Marlin autotuning (2014-01-20, https://github.com/ErikZalm/Marlin/blob/Marlin_v1/Marlin/temperature.cpp#L250 ) uses the Ziegler-Nichols 'Classic' method, which first finds a gain which maximizes the oscillations around the setpoint, and uses the amplitude and period of these oscillations to set the proportional, integral, and derivative terms.

Saving PID settings

You will need to commit your changes to EEPROM or your configuration.h file for them to be permanent.

To save to EEPROM use:M500

Modifying Marlin Autotune parameters

The default Marlin M303 calculates a set of Ziegler-Nichols 'Classic' parameters based on the Ku (Ultimate Gain) and the Pu (Ultimate Period), where the Ku and Pu are determined by searching for a biased BANG-BANG oscillation around an average power level that produces oscillations centered on the setpoint. (See https://github.com/ErikZalm/Marlin/blob/Marlin_v1/Marlin/temperature.cpp#L238 )

You can transform these 'Classic' parameters into the Zeigler-Nichols 'Some Overshoot' set with:

Or the Z-N 'No Overshoot' set:

Note that the multipliers for the autotuning parameters each have only one significant digit (implying 10% maximum precision), and that the other schemes differ by factors of 2 or 3. PID autotuning and tuning isn't terribly precise, and changes in the parameters by factors of 5 to 50% are perfectly reasonable.

In Marlin, the parameters that control and limit the PID controller can have more significant effects than the popular PID parameters. For example, PID_MAX and PID_FUNCTIONAL_RANGE, and PID_INTEGRAL_DRIVE_MAX can each have dramatic, unexpected effects on PID behavior. For instance, a too-large PID_MAX on a high-power heater can make autotuning impossible; a too-small PID_FUNCTIONAL_RANGE can cause odd reset behavior; a too large PID_FUNCTIONAL_RANGE can guarantee overshoot; and a too-small PID_INTEGRAL_DRIVE_MAX can cause droop.

PID Tuning by Commercial PID

If you have access to a PID controller unit and a compatible thermal probe that fits down into your hotend, you can use them to tune your PID and calibrate your thermistor.

Connection of the output of the PID to your heater varies depending on your electronics. (I used a 1K2:4K7 voltage divider to drop the 22V output of the PID to 5V for my bread-boarded VNP4904)

You make me brave amanda cook free mp3 download.
After the PID is connected you can use it to measure the nozzle temperature and correlate it with the thermistor readings and resistances.

What Is Pid Auto Tuning Kit

Conversion from the commercial PID values of kP in %fullscale, Ti in seconds, and Td in seconds is as follows:

As an example, a $30 MYPIN TD4-SNR 1/16 DIN PID temperature controller and $10 type-K probe can hold a particular Wildseyed hotend with a 6.8ohm resistor at 185.0C+/-0.1C using 12V with about a 43.7% duty cycle, or 0.437*12*12/6.8=9.25W. Invoking the autotuning on the controller produces these parameters: P=0.8%/C, I=27s, D=6.7s. Converting these to Marlin PID values:

Pid Controller Autotuning

Differences between the results can be caused by physical differences in the systems, (e.g: the thermocouple is closer to the heater than the thermistor,) or by different choices of autotuning parameters (e.g.: the MYPIN TD4 autotuning process is a proprietary black box, while Marlin uses Zeigler-Nichols 'Classic' method.)

The Temperature/resistance table below was developed by using the PID+thermocouple system to set temperatures on a sample hotend by controlling the heater while measuring the thermistor resistance. These values can be used with Nophead's http://hydraraptor.blogspot.com/2012/11/more-accurate-thermistor-tables.html or Marlin's https://github.com/ErikZalm/Marlin/blob/Marlin_v1/Marlin/createTemperatureLookupMarlin.py to create calibrated thermistor tables. The PID column collects the autotuning values produced by the PID controller for the indicated temperature. The kP,Ki,Kd lists the converted parameters.
